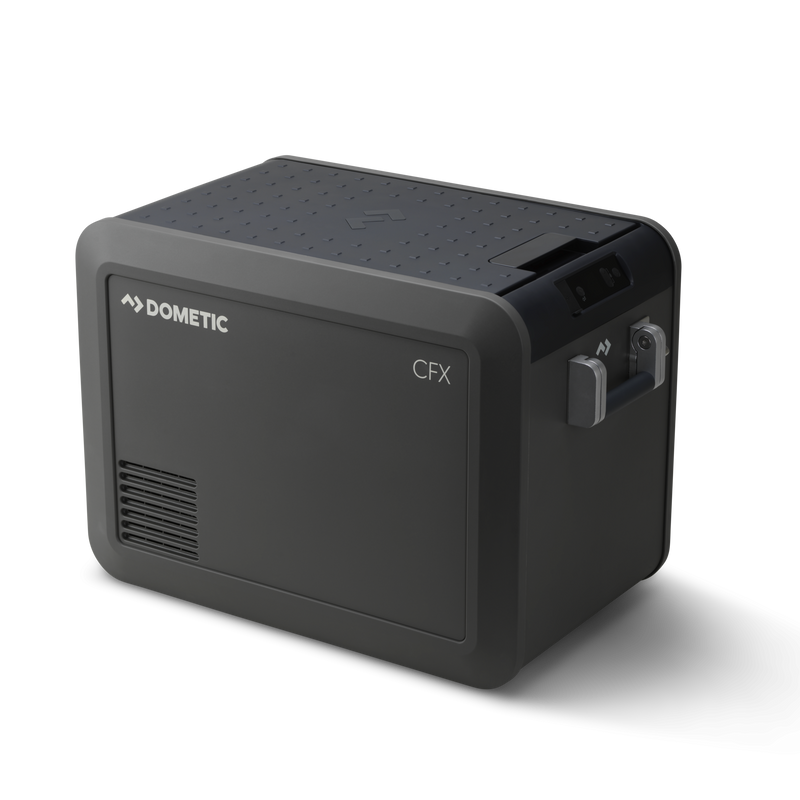

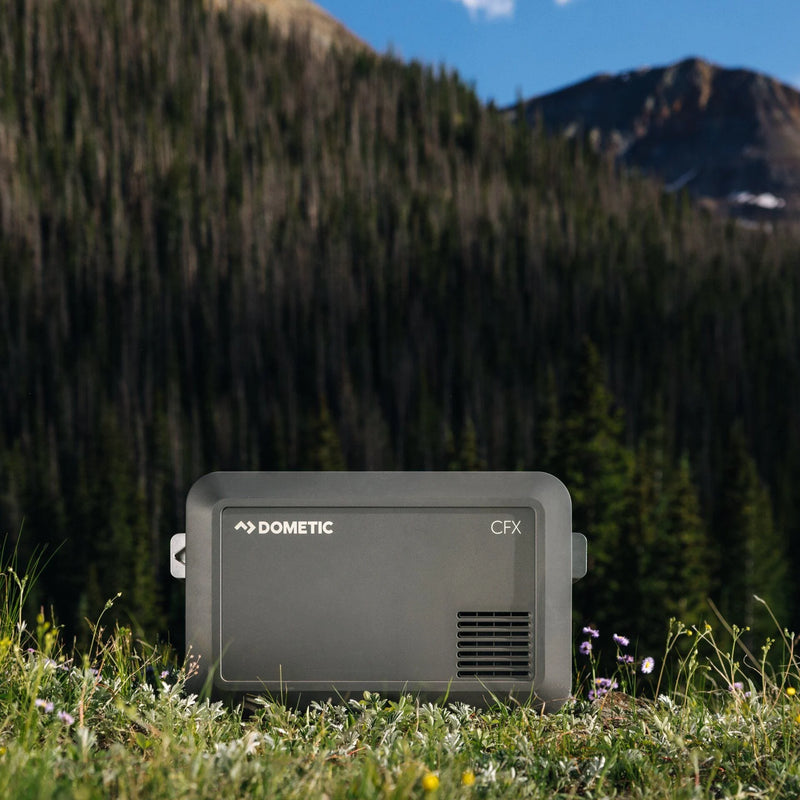

Dometic CFX5 45 Electric Cooler

The versatile CFX5 45L has a minimal footprint, holds 67 cans, and is your ice-free electric cooler for camping trips, portable fridge for the van or boat. Efficient Vacuum Insulated Panels deliver outstanding insulation, the lid’s gasket seals tight, and the compressor takes it down to -7F degrees. You can control it with our app, the rugged build is road-ready, and – cheers – a bottle opener’s built in.

VIP – VACUUM INSULATED PANELS
Exceptionally efficient insulation. Vacuum Insulated Panels have superb energy efficiency, VIPs minimize thermal transfer through superior sealing and air removal techniques.

POWERFUL VMSO 3.5 COMPRESSOR
Variable Motor Speed Optimization Technology 3.5 automatically adjusts speed for optimal performance.

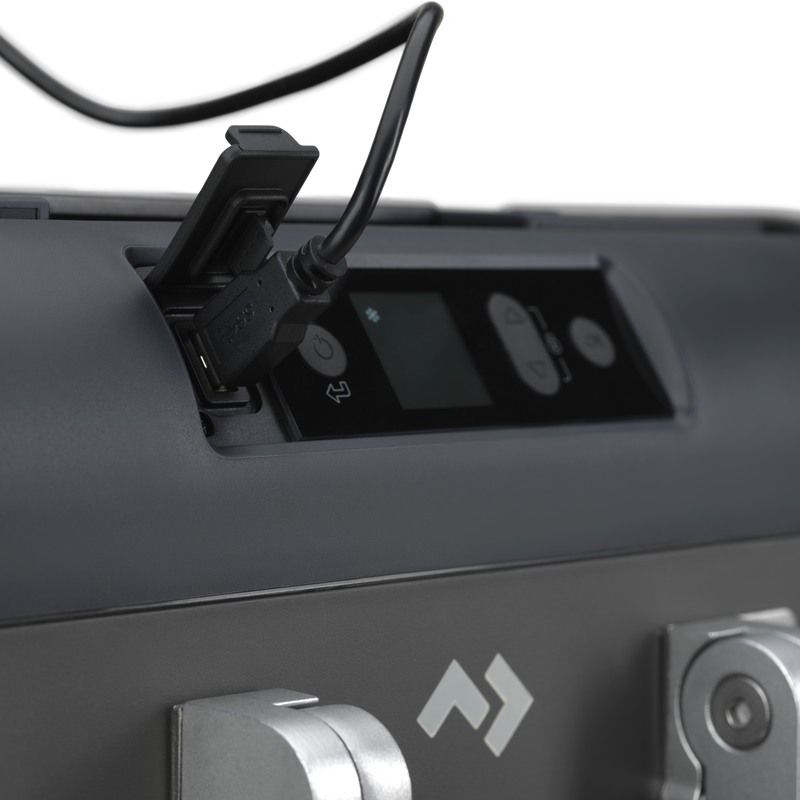

WEATHERPROOF HIGH RESOLUTION DISPLAY
Easy-to-read, weatherproof, high-resolution TFT color operating display, with 18W QC 3.0 USB port, and soft-touch buttons.

RELIABLE & STABLE INTERIOR
Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.

PREMIUM DESIGN DETAILS
Removable wire divider, interior light, self-folding aluminium alloy handles, an integrated bottle opener, TPE gaskets for a tight lid seal, and removable lid with textured non-slip logo.

DURABLE EXOFRAME DESIGN

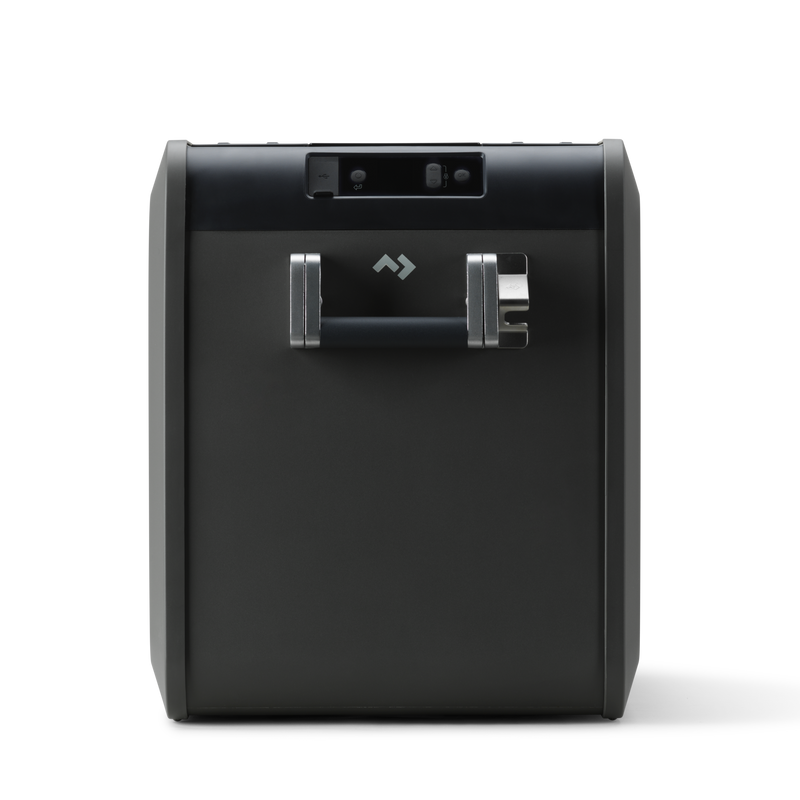

Reinforced corners and edges, and folding handles that help you take it anywhere.

Technical Information:
Color - Black
Brand - Dometic
Scope of delivery - 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener
EAN-13 - 0034223507558
Publication Model Name - CFX5 45 Electric Cooler
SEO Publication Name - Dometic CFX5 45 Electric Cooler
Product Description - Advanced Materials and Design in an Ice-Free 45L Electric Cooler
Dimensions product depth, [mm] - 694
Dimensions product height, [mm] - 476
Dimensions product width, [mm] - 398
Net weight, [kg] - 18.30
Net weight, [lbs] - 40.35
Dimensions parcel depth, [mm] - 730
Dimensions parcel height, [mm] - 525
Dimensions parcel width, [mm] - 435
Parcel weight, [kg] - 20.90
Parcel weight, [lbs] - 46.08
GWP - 0.501
Rated input current (AC), [A] - 0.94A at 100V, 0.39A at 240V
Rated input current (DC), [A] - 3.7A at 24V, 8.1A at 12V
Rated input power (AC), [W] - 49
USB Port - Yes
Connectivity Type - Bluetooth, Interact, WiFi
Basket - Yes
Threaded inserts in base for mounting - M6

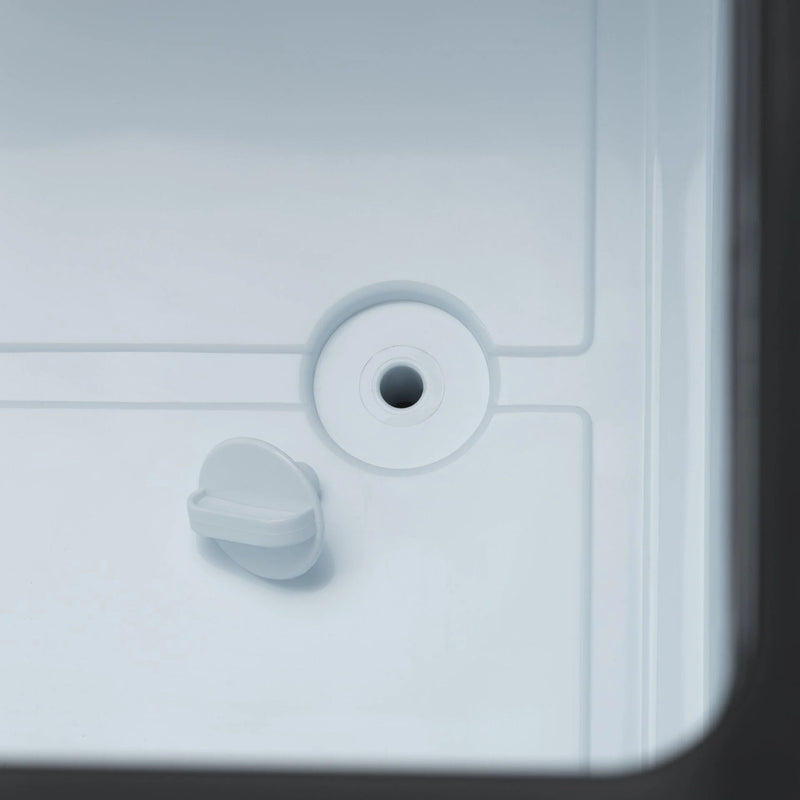

Drain plug - Yes
Anti-condensation coil - Yes
Single or Dual Zone - Single
Thermostat control - Electronic Thermostat
Hinge type - Top
Interior light - Yes, LED
Total volume (IEC 62552-3), [l] - 46.000000
Amount of cans (12oz/375ml) - 67
Hermetically Sealed - Yes
Refrigerant, type - R1234yf
Input voltage (AC), [V] - 100-240
Input voltage (DC), [V] -12/24
Input frequency, [Hz] - 50/60
Battery type - Not Applicable (NA)
Priority circuit (Integrated) - Yes
Noise (EN60704-1 & 60704-2-14), [dB(A)] - 41.000000
Climate class (EN 62552) - N/T
Operating temperature min, [°C] - 16.000000
Operating temperature max, [°C] - 43.000000
Insulation Type - PU (Polyurethane)
Dimensions product width, ["] - Display - 15.67
SKUSKUOptionalAccessories - 9600017007
Item Description - CFX545, UL plug, USA, AC/DC
Pack Size - Yes

Features:
01
The 45L capacity holds up to 67 x 12 oz cans – a versatile size for up to five people’s weekend adventures, family camping trips, and extended nomadic travel.
02
Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
03
Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
04
Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.
05

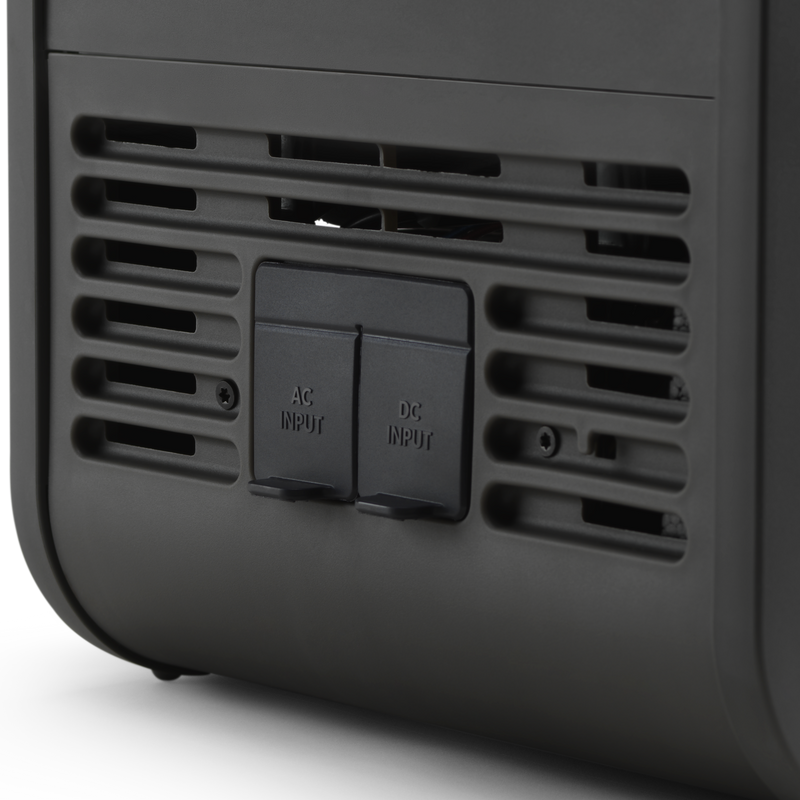

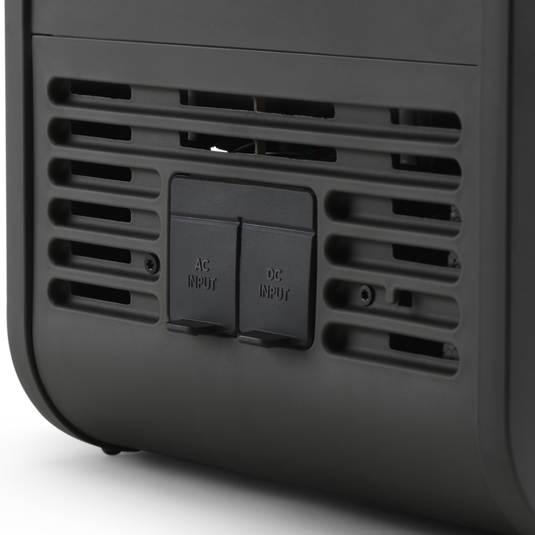

Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
06
3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.
07

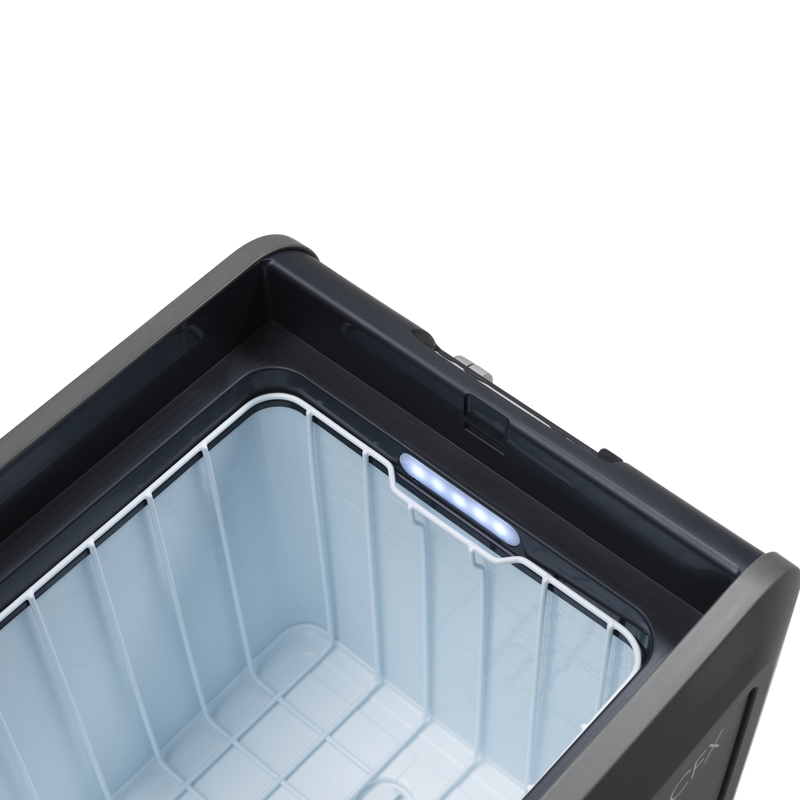

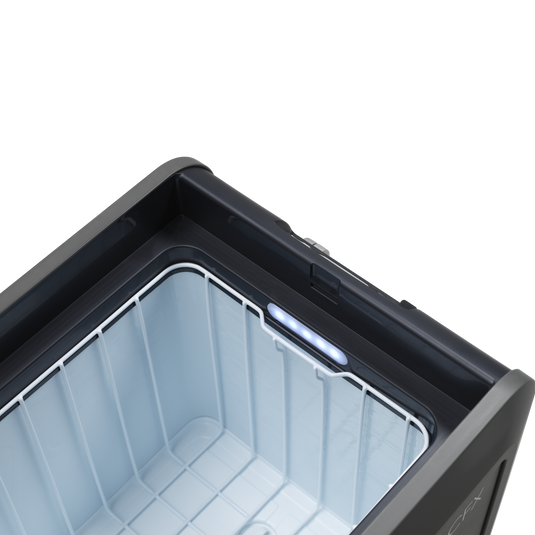

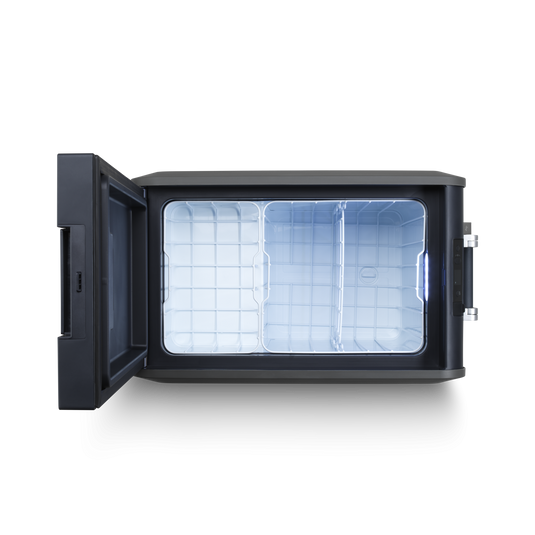

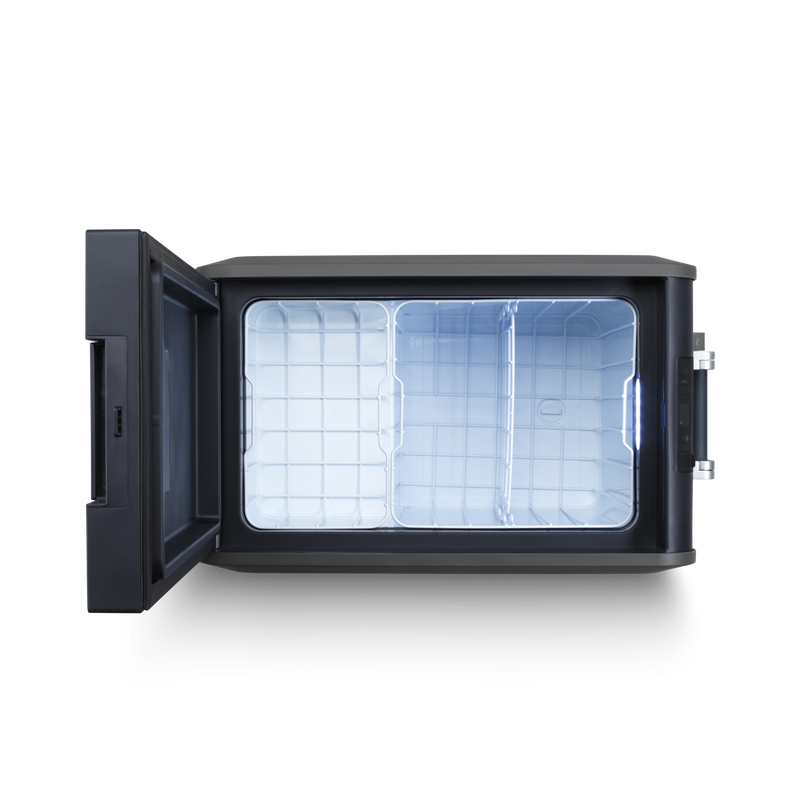

Internal details include a removable wire divider and an interior light.
08

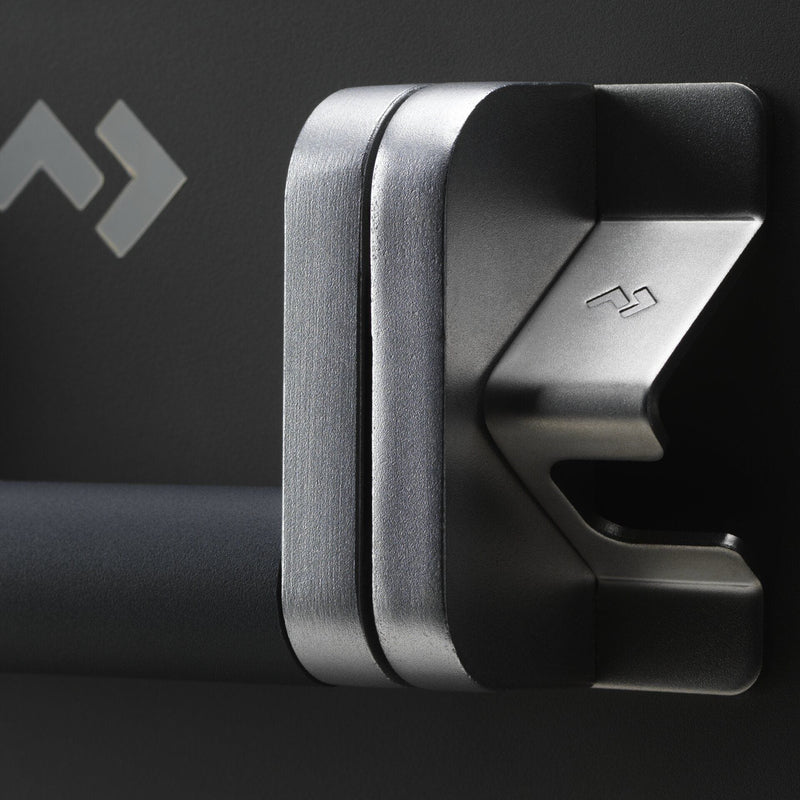

External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.
