KSTF001BP

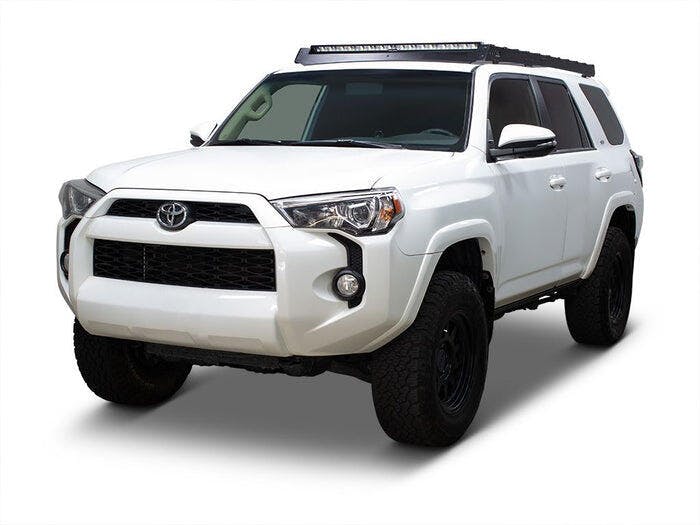

Front Runner Toyota 4runner (2010-Current) Slimsport Roof Rack Kit


It’s never been easier to start your adventure with the Toyota4Runner (2010-Current) Slimsport Roof Rack Kit. This low-profile rack lets you immediately enjoy the Great Outdoors with versatile accessories so you can build your own adventure and go! This Slimsport Roof Rack is ready to play.

Features:

  • This low profile flat deck Slimsport rack has a load carrying area of 2080mmL (81.88") x 1175mmW (46.25").
  • The sleek side rails have integrated mounting feet. Mounting feet also have additional brace brackets for added strength.
  • The high-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
  • Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (sold separately).
  • Easily add on the Roof Rack Accessory Mounting Bracket Slimsport Side Mount Accessory Bracket / Small – by Front Runner (sold separately) for all Front Runner side mount accessories.
  • The included standard full fairing with rubber edge trim, makes the rack ultra-quiet.
  • Option to add 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount
  • Fitment guide and all mounting hardware included.
  • 6"/T30 Torx Allen Key for Slimsport Rack is required for installation (sold separately).
  • Note: Uses factory fixing points with no drill required front foot as standard but also includes hardware included for drill option (recommended).
  • Note: Under Rack Tables are not compatible with the Slimsport rack kit range.
  • Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

Consisting of:

  • 1 x Toyota 4Runner (2010-Current) Slimsport Roof Rack Kit
  • Installation Hardware
  • Fitting Instructions

Material Used:

  • Black epoxy powder - coated T6 aluminium
  • High strength steel

Assembled Rack Kit Dimensions:

  • 2225mm (87.6") L x 1181mm (46.5") W x 121mm (4.7") H

Approximate Installed Weight:

  • Standard: 37kg (81.57lbs)
  • Light Bar Ready: 39.95kg (88.07lbs)

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.

    Shipping Dimensions (Standard):

    • Width: 325mm (13")
    • Length: 1700mm (67")
    • Height: 160mm (6")
    • Weight: 37kg (81lbs)

    Shipping Dimensions (Light Bar Ready):

    • Width: 330mm (13")
    • Length: 1700mm (67")
    • Height: 210mm (8")
    • Weight: 41kg (90lbs)

       Installation Instructions for KSTF001
