2017856350BR

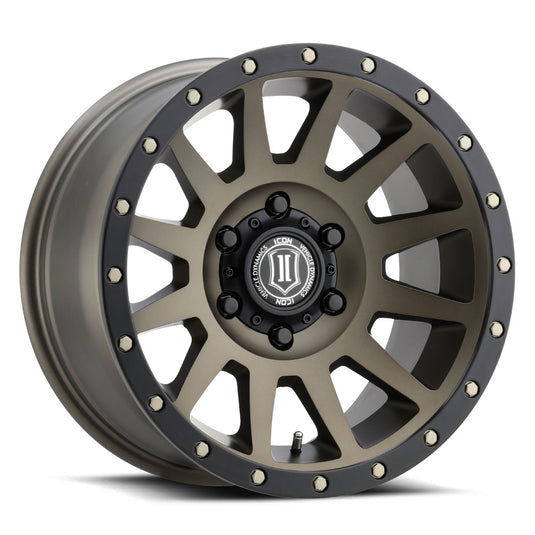

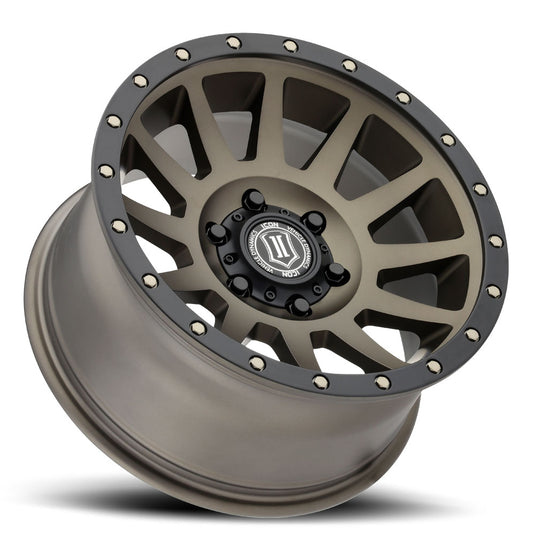

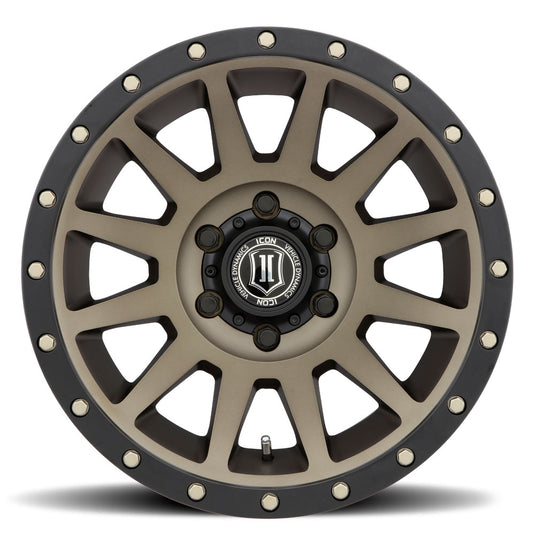

ICON Vehicle Dynamics Compression/ Bronze

Bring a bold new look to your ride with the all-new ICON Alloys COMPRESSION! Combining sharp lines, a concave spoke design, and "ICON-optimized" dimensions, these wheels will increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the COMPRESSION has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Key Features:
  • Application-specific dimensions optimize vehicle dynamics and tire clearance
  • Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
  • Aluminum alloy construction provides strength properties that are well suited for off-road use

17x8.50" Diameter Specifications:

BP
Backspace
Offset
Bore
Load
Weight
Finish
5x150
5.750"
25mm
110.10mm
2750lbs.
30lbs.
Bronze
6x135
5"
6mm
87mm
2750lbs.
30lbs.
Bronze
5x5
4.500"
-6mm
72mm
2750lbs.
30lbs.
Bronze
6x5.5
4.750"
0mm
106mm
2750lbs..
30lbs.
Bronze
6x5.5
5.750"
25mm
93.10mm
2750lbs.
30lbs.
Bronze

18x9" Diameter Specifications:

BP
Backspace
Offset
Bore
Load
Weight
Finish
5x150
6"
25mm
110.10mm
2750lbs.
34lbs.
Bronze
6x135
5.250"
6mm
87.10mm
2750lbs.
34lbs.
Bronze
5x5
4.500"
-12mm
71.50mm
2750lbs.
34lbs.
Bronze
6x5.5
5"
0mm
106.10mm
2750lbs
34lbs.
Bronze

 20x10" Diameter Specifications:

BP
Backspace
Offset
Bore
Load
Weight
Finish
5x150
4.750"
-19mm
110.10mm
2750lbs.
40lbs.
Bronze
6x135
4.750"
-19mm
87.10mm
2750lbs.
40lbs.
Bronze
5x5
5"
-12mm
71.50
2750lbs.
40lbs.
Bronze
6x5.5
4.750"
-19mm
106.10mm
2750lbs.
40lbs.
Bronze
